Multi-purpose H/I Beam CNC Cutting Coping Machine for Architecture and Structural Engineering

Original price was: $158,000.00.Current price is: $155,000.00.

This i beam cutting machine from JeesunCNC can be used for different steel sections, including H/I section beam, C channel, angle steel, etc. The steel I beam coping machine has advantages of high efficiency & advanced functions, thus the cnc beam cutting machine is the ideal & best way to cut i beam & other profiles in structural engineering.

Inquire Now
Category: Tags: , , , ,

Description

Multi-purpose H/I Beam CNC Cutting Coping Machine for Architecture and Structural Engineering

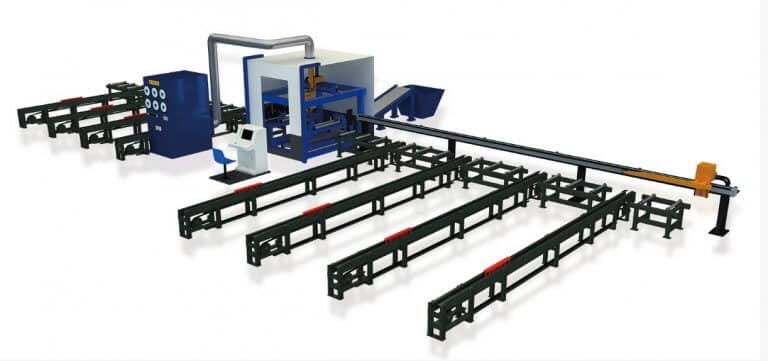

This CNC H beam cutting machine is fully automatic CNC metal cutting machine specially designed for cutting steel beams and other profiles, the whole beam coping machine is composed of raw material storage rack, feeding car, conveying roller bed, feeding trolley and trolley tracks, cutting unit, discharging unit, finished product storage rack, dust removal device, console station, etc. H beam, I beam and other profiles can be conveyed through the conveying roller to the cutting station and transported to the next station after cutting. Two kinds of cutting modes are available for the machine: plasma cutting and oxy-fuel cutting, different kinds of materials can be cut. This CNC beam cutting machine takes Auto CAD drawing, which can be applied directly on the industrial computer or connect with computer via USB, it is characterized of simple modeling, fast cutting, Tekla supported, etc, thus different works, such as hole cutting, profile ends cutting, bevel cutting, marking, can be carried out. This beam cutting machine provides the best best way to cut steel i beam and other profiles, thus is widely used in building wall, web structure, steel structure, marine engineering, recreational facilities, fitness equipment and other industries.

H Beam Cutting Video:

Techinical Parameters:

NameCNC H Beam Coping Machine
Profile typesH beam, I beam, channel steel, angle steel, etc.
Effective cutting length12m(can be customized)
beam sizeweb height: 100mm-1500mm, flange width: 100-600mm(can be customized)
Cutting modePlasma/flame cutting
Cutting thicknessFlame: 6-60mm;  plasma: upon actual plasma source
Cutting speed10-2,000mm/min.
Moving speed10-6,000mm/min.
Cutting accuracy±1.5mm
Positioning accuracy±0.3mm
Repeatability accuracy±0.02mm
Bevel cutting45 °
Max loading capacity3.5T
Power supplyAC380V/50HZ, 3-phase(customized)

H-beam Cutting Machine Details:

1).Raw-material storage rack, roller bed and feeding mechanism

Function: providing storage area for raw material and feeding material for further cutting;
Structure: mainly composed of roller frames, driven rollers and side positioning wheel, profiles will be conveyed to the datum line after loaded onto roller frame to guarantee the feeding accuracy, then lifting and moving cars will convey profiles to the cutting roller station.
Features: compact structure, simple running, high feeding accuracy & working efficiency.
2).Feed-in trolley & trolley track

Function: to realize the automatic feeding of the workpiece.
Structure: A servo motor is used to control the feeding trolley to complete the pipe positioning and clamping device. Different pipes are lifted and lowered by the AC motor to drive the clamping device to reach the pipe positioning point to be pneumatically clamped.
Features: Intelligent clamping, saving labor. The trolley track uses accurate guide rails and racks, and the feeding is stable and accurate.
3).Cutting unit

Function: cutting of different profiles through control by cnc system;
Structure: mainly composed of C shape mechanical arm, station frame, cutting system, etc. The unit is fixed onto the cement foundation for high precision and high speed cutting;
Features: outer axes are driven by servo motors through high precision linear guide rails to guarantee the running accuracy of the whole system and to transform the complicated cutting path into simple multi-directional fitting path, the moving in different directions are simple and stable.
4).Finished-product discharging station and storage area

Function: discharging and storage of finished products;
Structure: composed of roller frame, driving roller and AC motor conveying mechanism, finished products will be conveyed by motor via cycle chain out of material platform, then discharged by roller car for further storage;
Features: remote station, high working efficiency and labor saving.
5).CNC control system

Features:
*Scientific human-machine interface, easy to operate;
*Intuitive 3D intersecting imaging;
*Dynamic cutting simulation;
*Quick automatic positioning, pause and speed adjusting;
*Cutting path return and re-cutting function;
*Automatic alarming display and automatic diagnosis;
*Online and offline programming;
*information-exchanging with outer via U disc;
*One-time cutting of multi-pipes.
6).Hypertherm plasma source

High quality plasma cutter from top rated suppliers, such as USA Hypertherm, HPR130, HPR260, HPR400, XPR170, XPR300, etc, which have big cutting capacity & excellent performance.

Functions

This CNC h beam cutting machine is designed for high-precision profiling of H-beam, I-beam, U-channel, and angle steel. It integrates plasma and flame cutting technologies to deliver a complete steel coping machine solution for structural steel fabrication
*Automatic Steel Coping
Functions as a dedicated steel coping machine for cutting copes, notches, saddles, and miters on heavy steel sections.
*Dual Cutting Sources
Plasma for mild steel (≤50mm) and flame for thick plates (≤150mm), all controlled via one CNC interface.
*Beam Rotating & Positioning
Hydraulic clamping and rotation enable precise steam coping (web and flange coping) without manual repositioning
*3D Profile Cutting
Creates complex cutouts, bolt holes, and weld preps; often searched as a steel coping machine for sale by fabricators.

Cutting Steel Beams Projects:
h beam cutting h beam plasam cutting project cutting square tube with plasma cutter

CNC Beam Coping Machine Application:

Applicable Material:
This h beam cutter machine is specially used for cutting i beam with plasma of intersecting mouth shape, hole opening and any other any intersecting overlap forms on various profiles, including H-beam, I-beam, channel steel, angle steel, etc.
Applicable Industry of beam coping machine:
The CNC beam plasma cutting machine can be used for coping i beam & cutting steel i beams in different industries, including
*Steel structure fabrication: Coping beams for high-rise buildings
*Bridge construction: Cutting gusset plates and coping main girders
*Power transmission towers: Notching angle steel and coping pipe sleeves
*Shipyard & offshore: Flame coping on heavy I-sections
*Pre-engineered buildings: Mass coping of rafters and column

Compliance & Test Standards:

Packaging & Delivery:

wooden packaging case delivery container delivery

Customer Case:

1.An oil and gas service provider company in USA bought 2 sets of all in one CNC plasma pipe cutter machines for the pipe engineering, increasing the working efficiency by 50%.
2. A leading Steel Fabrication and Supply in Papua New Guinea bought 1 set of 8 axis CNC plasma tube cutting machine for steel structure fabrication, significantly increasing the working efficiency by 1 times with the labor cost remains the same;

Price Of CNC Steel beam cutting machine:

The cost of a CNC plasma coping and cutting machine for structural steel typically ranges from $85,000 to $300,000+ USD, depending on:
*Cutting technology (Plasma only, flame only, or combined)
*Number of cutting stations (single or multi-torch)
*Beam/rail length (e.g., 12m, 24m, or longer)
*Plasma power source (e.g., 120A, 200A, 300A-higher amps cost more)
*CNC control & software (basic vs. advanced nesting / bevel cutting)
Example estimates:
*Small entry-level combo machine (China): $50,000-$80,000
*Mid-range production line : $100,000-$200,000
*Large heavy-duty line with automation & fume extraction: $200,000-$300,000+
For an exact quote, you would need to specify: beam size range, plate thickness, required cutting speed, and optional features (e.g., bevel cutting, marking, material handling).

FAQs About H beam cutting machine:

Q: I have no idea of the CNC H beam cutting machine, How can i decide which is the best machine to cut beam?
A: Our sales-team will communicate with you over working requirement and provide the best instruction, You just provide further detail as follows:
1).Type of your profile, round, square/rectangular, channel steel, H beam or others?
2).Material of your profile
3).Dimension of your material, including diameter range, length, wall thickness, etc.
4).Max.cutting thickness & most common cutting thickness.
5).is bevel cutting required?
Q:How can i check the machine quality & working performance?
A: You are welcomed to our factory whenever your time permits, also, you can ask your representative or partner here for you, will arrange discussion with technical team & inspection of the cutting performance. Besides, online technical service & support is available, our engineer will provide live video show around the factory and send the sample pictures and videos you want.
Q:What is the warranty time for the machine?
A: 2 years guarantee for the whole machine since delivery, during warranty period, any faulted part will be replaced for free, Not include consumables.
Q:How is the training policy for oversea customers?
A:User manual of different language venison will be sent with demo CDs & other document which will provide detailed training instructions on operation, maintenance, etc. Also, free training service can be provided. Your workers can get trained for free in our factory for 1-3 days, if on-site training & maintenance service are required, We will arrange local service within 48 hours.
Q:If the machine fails to work during use, how to do then?
A:Our after-sales team are available 7x24h for any problem during use, they will help judge the problem & provide troubleshooting via different means, including phone call, Whatsapp, Email, Skype, etc. Also, door-to-door service can be provided, if you need.

Get The Latest Quote Now:





    Additional information

    Weight10000 kg
    Dimensions2600 × 600 × 300 cm
    Profile Type

    C channel, angle steel, H/I beam, etc.

    Profile Range

    1200x600mm(customizable)

    Cutting Mode

    plasma cutting + oxyfuel cutting

    Plasma Power

    200A/300A/400A

    Lead Time

    45 working days

    Warranty

    2 years

    Trade Terms

    FOB / CIF / CFR / EXW
