Steel Beam Laser Cutting Video:

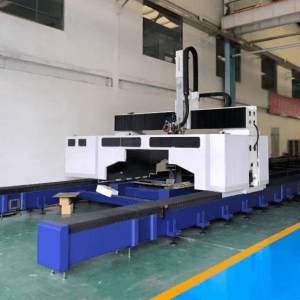

Features of 5 Axis Fiber Laser Cutting Machine:
Techinical Parameters:
| Name | Parameters |
| Beam size | Flange: ≤500mm Web: ≤1,200mm Length:≤26,000mm (customized on demand) |
| Plate size | 26,000*2,500mm |
| Laser power | 12kw/15kw/20kw/30kw |
| X-axis travel | 26,000mm |
| Y-axis travel | 2,550mm |
| Z axis travel | 970mm |
| A-axis stroke (rotary axis) | ±90° |
| C-axis stroke (rotary axis) | ±45° |
| U axis travel (height adjustment axis) | ±40mm |
| Bevel cutting | ±45° |
| X/Y/Z max positioning speed | 30m/min |
| positioning accuracy | ≤0.1mm |
| Cutting Accuracy | ≤0.05mm |
| Single section steel** weight | 5,000kg |

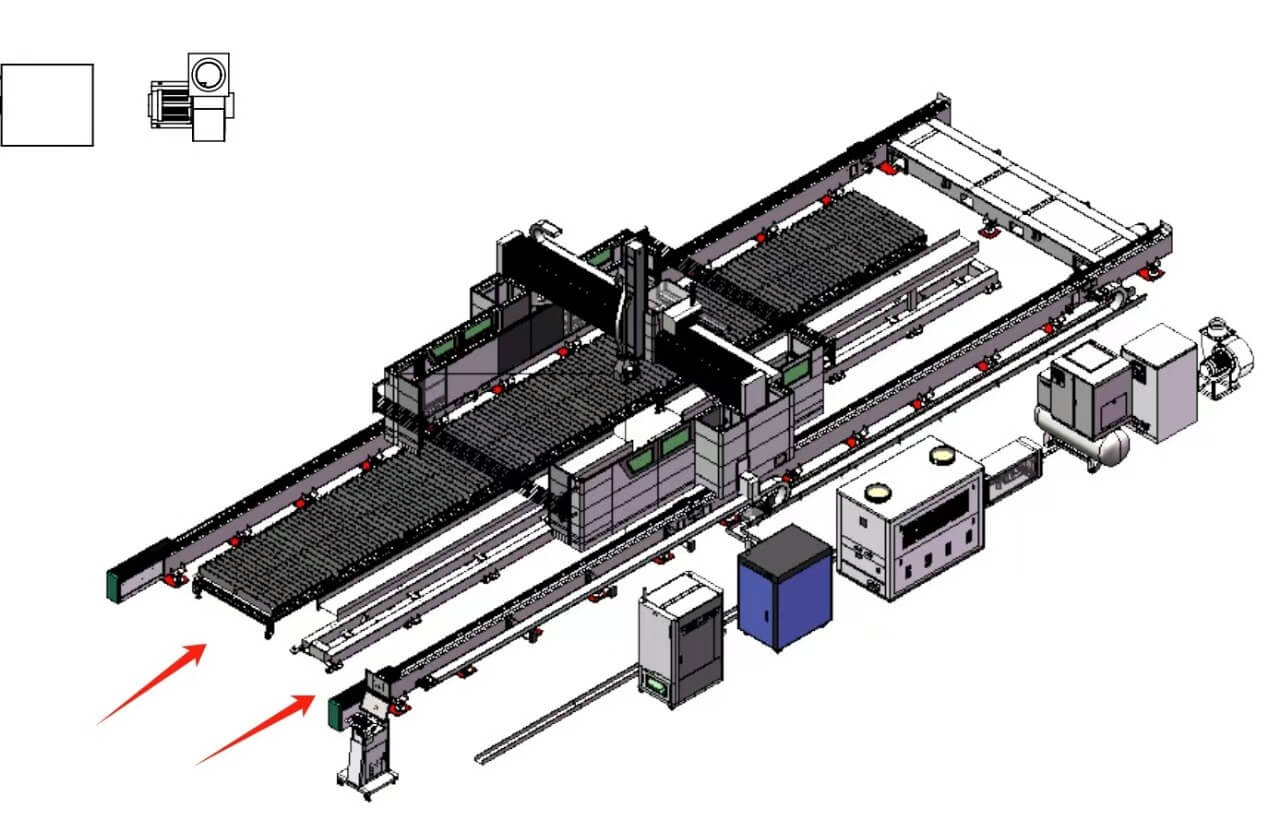

3D Fiber Laser Cutting Machine Details:

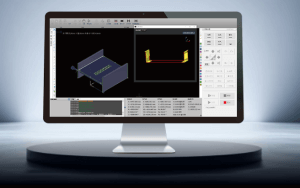

1).The steel beam cutting machine takes the advanced BOCHU controller FSCUT9200, which is equipped with BCW laser profiler. It effectively detects and compensate for steel deformation, supports various cutting scenarios, enables fast drawing and efficient nesting, and promotes capacity upgrades in the steel structure industry.

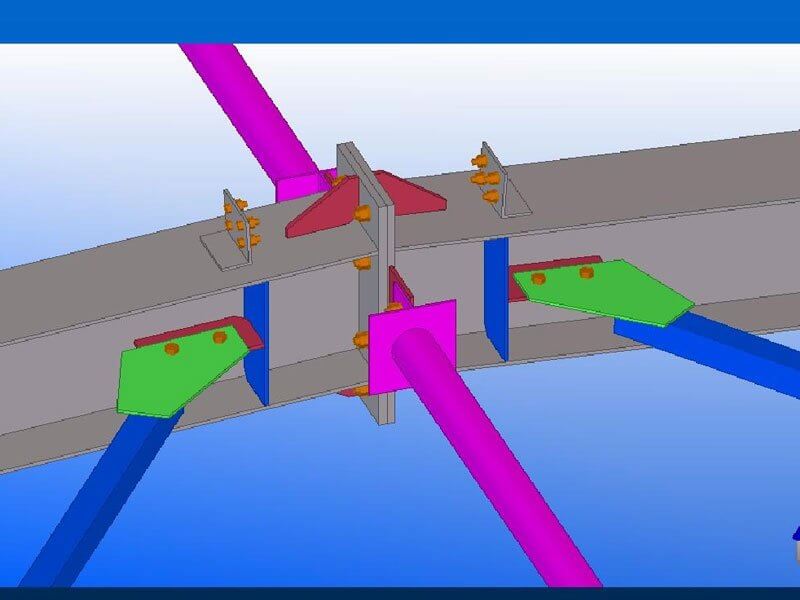

2).This steel beam laser cutting machine adopts Tekla steel structure 3D modeling system which supports various tower connection forms bevel cutting processes
3).Top quality IPG fiber laser with extremely high electro-optic conversion efficiency (30%+), energy-saving and environmentally friendly; Excellent beam quality with higher work efficiency & better processing quality; Compact size, maintenance free and low running cost.

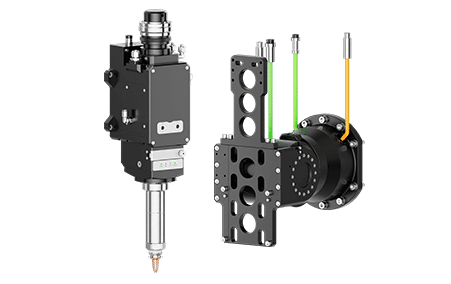

4).Dedicated laser cutting head with BC-axes and a laser profiler specifically for structural steel cutting power ranging from 6 to 40 kW. This combination features intelligent technologies such as gas pressure monitoring, window temperature monitoring, and collision protection. It can meet the processing requirements for steel flange beveling, web plate beveling, stitch-hole cutting, bolt-hole cutting, and more. The cutting performance is stable and the results are excellent. For more details, please refer to the product introduction.
5).The welding structure of heavy-duty machine is subjected to stress relief annealing followed by rough and precision machining, followed by secondary aging treatment to eliminate stress, prevent deformation, and be more durable. After high-temperature annealing and natural aging, welding stress is eliminated, effectively ensuring high speed, high precision, and high stability of the entire machine operation during high-speed cutting.
6).Top quality dual servo motor drive system, synchronous dual drive, effectively ensuring high speed, high precision during cutting and high stability of the entire machine operation.

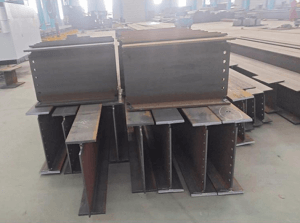

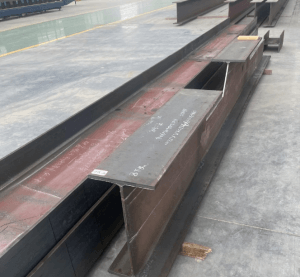

Steel Beam Laser Cutting Projects:
Application of CNC beam cutting machine:
Applicable Material:
Applicable Industry:
Packaging & Delivery:
FAQs About steel beam cutting machine:
Q: I have no idea of the CNC beam cutting machine, How can i decide which is the best machine to cut beam?
A: Our sales-team will communicate with you over working requirement and provide the best instruction, You just provide further detail as follows:
1).Type of your profile, round, square/rectangular, channel steel, H beam or others?
2).Material of your profile
3).Dimension of your material, including diameter range, length, wall thickness, etc
4).Max.cutting thickness & most common cutting thickness
5).is bevel cutting required?
Q:How can i check the machine quality & working performance?
A: You are welcomed to our factory whenever your time permits, also, you can ask your representative or partner here for you, will arrange discussion with technical team & inspection of the cutting performance. Besides, online technical service & support is available, our engineer will provide live video show around the factory and send the sample pictures and videos you want.
Q:What is the warranty time for the machine?
A: 2 years guarantee for the whole machine since delivery, during warranty period, any faulted part will be replaced for free, Not include consumables.
Q:How is the training policy for oversea customers?
A:User manual of different language venison will be sent with demo CDs & other document which will provide detailed training instructions on operation, maintenance, etc. Also, free training service can be provided. Your workers can get trained for free in our factory for 1-3 days, if on-site training & maintenance service are required, We will arrange local service within 48 hours.
Q:If the machine fails to work during use, how to do then?
A:Our after-sales team are available 7x24h for any problem during use, they will help judge the problem & provide troubleshooting via different means, including phone call, Whatsapp, Email, Skype, etc. Also, door-to-door service can be provided, if you need.
