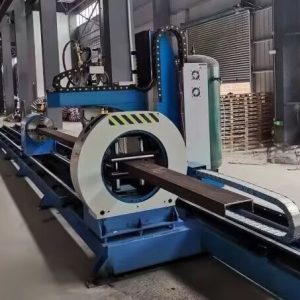

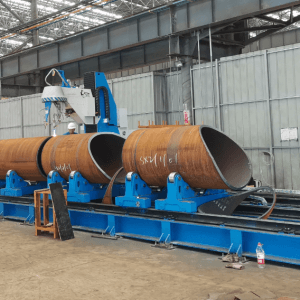

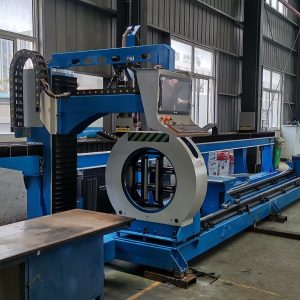

CNC Plasma Tube Cutter Machine

The CNC plasma tube cutter machine represents a major leap in automated tube and pipe processing. Combining computer numerical control (CNC) with high-energy plasma arc technology, this CNC plasma tube cutting machine delivers fast, precise, and repeatable cuts on various metal pipes. From simple straight cuts to complex bevels and intersecting contours (pipe-to-pipe connections), it eliminates manual marking, reduces material waste, and dramatically increases production efficiency.
Designed for workshops and heavy industrial environments, modern CNC plasma pipe cutter machines support round, square, rectangular, and oval tubes. They integrate user-friendly software, automatic torch height control, and robust rotary axes – making them the preferred choice for metal fabrication, structural steel, and pipeline industries.

What Is A Plasma Tube Cutter?

A CNC plasma pipe cutting machine is an automated thermal cutting system specifically engineered to cut conductive metal pipes and tubes. It uses a plasma torch mounted on a multi-axis motion system (typically X, Y, Z, a rotational axis and a swing axis or even more). The CNC controller synchronizes torch movement with pipe rotation, allowing precise cutting along the pipes circumference, end face, or any programmed trajectory. The CNC tube plasma cutter takes high quality main parts from top rated suppliers from all over the world, such as Hypertherm plasma cutter, Panasonic servo system, Shimpo reducer, YYC rack pinon, HIWIN guide rail, etc. Owing to its outstanding advantages over traditional processing methods, CNC plasma pipe cutter machine is widely used in different kinds of metal fabrication induistries, including steel structure, decoration, construction, pipeline, machinery, ship-building, etc.

How Does CNC Plasma Tube Cutting Machine Work?

Compressed air or gas is ionized into a high-temperature plasma arc (up to 25,000°C) that melts the metal. A high-velocity gas stream blows the molten material away, creating a clean, narrow kerf. The CNC system follows CAD/CAM designs–including saddle cuts, lateral holes, fishmouth joints, and beveled edges –all without secondary finishing.
This CNC plasma pipe cutting machine is ideal for cutting carbon steel, stainless steel, aluminum, copper, and alloy pipes. It replaces manual oxy-fuel torches, band saws, and punch presses, offering unmatched repeatability for batch production or one-off custom jobs.

Advantages & Features

1. High-Precision Rotary Axis

· Heavy-duty chuck or roller drive with servo motor and reducer ensures smooth, backlash-free pipe rotation.
· Positioning accuracy: ±0.5 mm / meter; repeatability: ±0.3 mm.

2. Intelligent Pipe Nesting Software

· Built-in CAD/CAM supports pipe-specific shapes (intersecting lines, bevel ends, slots, holes).
· Automatic nesting reduces waste; 3D simulation prevents collisions before cutting.

3. Automatic Torch Height Control (ATHC)

· Real-time voltage sensing maintains constant torch-to-work distance even on oval or deformed pipes.
· Arc collision protection and break-through detection increase safety.

4. Bevel Cutting Capability

· Optional bevel head (up to ±45°) for preparing weld-ready edges on pipe ends.
· Supports V/Y/X bevels without repositioning.

5. Versatile Pipe Handling

· Processes round, square, rectangular, and even profile tubes (H-beam, C-channel with optional attachments).
· Diameter range: 20 mm-600 mm (custom up to 1200 mm). Max pipe length: 6,000 mm (12,000 mm optional).

6. Low Operating Cost

· Uses compressed air (no expensive fuel gases like acetylene).
· High-duty plasma consumables last 500–1500 cuts depending on material thickness.

7. User-Friendly Control

· Industrial PC with touch screen; supports G-code, DXF, and PLT files.
· Remote diagnostics and offline programming available.

Tube Plasma Cutting Video

Technical Parameter

Tube Plasma Cutting Projects

What Is CNC Plasma Tube Cutter Used For?

The CNC plasma pipe cutting machine serves any sector requiring precise, high-speed pipe profiling:

Primary Industries

· Oil & gas pipelines – cutting branch connections, saddle holes, and flange ends.
· Structural steel fabrication – trusses, space frames, and tower columns.
· Pressure vessels & heat exchangers – tube sheets, nozzles, and coil pipes.
· Automotive & truck exhaust systems – stainless steel tubes with beveled ends.
· Furniture & fitness equipment – chair frames, table legs, treadmill frames (aluminum/steel).
· Agricultural machinery – grain augers, irrigation pipe joints.

Typical Cut Shapes

· Straight cut-off
· Saddle (fishmouth) joint
· Radial hole and slot
· End bevel (single V, compound)
· Spiral cut and louver

Materials Processed

· Mild steel (most common)
· Stainless steel 304/316
· Aluminum (requires high-frequency start plasma)
· Copper, brass (limited thickness)

Case example: A pressure vessel manufacturer reduced fit-up time by 70% after switching to CNC plasma pipe cutting for nozzle openings, eliminating template marking and hand grinding.

How Much Does A CNC Plasma Tube Cutter Cost?

CNC plasma pipe cutting machines are highly configurable. The final price depends on:
· Pipe diameter & length capacity
· Plasma power source brand and amperage (e.g., Hypertherm vs. China local brand)
· Number of axes (bevel cutting vs. Non-bevel)
· Automation level (manual loading vs. auto feeder, dust collector)
· Software features (basic nesting vs. 3D pipe library).
Estimated price ranges (ex-works, USD):

Note: Prices exclude shipping, customs, installation, and training. Most suppliers offer FOB (China) or EXW terms. Used machines start from $8,000 but may lack software updates or spare parts support.

Why Choose Our CNC Plasma Pipe Cutting Solution?

· Factory-direct support – CAD/CAM training, spare parts stock, global warranty (12 months).
· Customization – From pipe loading tables to scribing/marking attachments.
· Compliance – CE, CSA, or ISO 9001 certification available.
· After-sales – Online troubleshooting, video guidance, and on-site service (paid).

Get a Quote Today

Ready to upgrade your pipe processing line? Contact our engineering team with your tube dimensions and production goals. We will recommend the right configuration and send a detailed quotation within 24 hours.

Request a free process test – mail us your pipe drawing (DXF or PDF) and we will cut samples for evaluation. Our email id: chatong0531@gmail.com.
