Structural Steel Laser Cutting Machine


Tube laser cutting machine is becoming quite necessary for metal fabrication, when it comes to purchase, however, few can tell exactly which is the best tube laser cutter? So, please check our 2024 latest buyer guide on CNC laser pipe cutting machine. You can always find the satisfactory cnc tube laser cutter machine within your budget no matter you are beginners & hobbyists or experienced metal fabricators & metalworkers.

简介 What Is A Tube Laser Cutting Machine?

Tube laser cutting machine is actually a kind of laser metal cutting machine, it is dedicated for pipe & tube profiles, including round, square, rectangular, oveal, channel steel, angle steel, beam profile, etc. The tube laser cutter machine takes top rated fiber laser, such as IPG, Raycus, etc, which enables the machine excellent performance. The laser pipe cutting machine is characterized of advanced function, high efficiency & automation, thus it is widely used for high precision cutting in different industries, such as fitness equipment, furniture, medical instrument, avaiation, etc.

产品特色 Advantage of Tube Laser Cutter

(1).High Cutting Accuracy:
Laser cutting machine positioning accuracy is 0.05mm, and repeated positioning accuracy is 0.03mm.
(2).Narrow Cutting Slit:
The laser beam is focused into a very small light spot, so that the focal point reaches a high power density, the material is quickly heated to the degree of vaporization, and the hole is evaporated. With the relatively linear movement of the beam and the material, the hole is continuously formed with a narrow slit, and the width of the slit is generally 0.10-0.20mm.
(3).Smooth Cutting Surface:
The cutting surface has no burrs, and the roughness of the cutting surface is generally controlled within Ra6.5.
(4).Fast Cutting Speed:
The cutting speed can reach 10m/min, and the maximum positioning speed can reach 30m/min, which is much faster than the linear cutting speed.
(5).Good Cutting Quality:
Non-contact cutting, the cutting edge is little affected by heat, basically no thermal deformation of the workpiece, completely avoid the collapse of the material formed during punching, the cutting seam generally does not require secondary processing.
(6).No Damage to Workpiece:
The laser cutting head will not contact the surface of the material, ensuring that the work-piece is not scratched.

技术参数 Techncial Specification

Profile TypeRound, square, rectangular, oval, channel steel, angle steel, H beam, etc.
Pipe Length6/9/12m
Diameter RangeΦ20mm-Φ160mm, Φ20mm-Φ220mm, Φ20mm-Φ350mm, Φ20mm-Φ500mm, etc.
Laser Power1000W/1500W/2000W/4000W/6000W, etc.
Positioning Accuracy±0.03mm
Re-positioning Accuracy±0.02mm
Power Supply380V, 3-phase, 50Hz/60Hz

视频演示

Tube Laser Cutter Projects

Application of Laser Pipe Cutting Machine

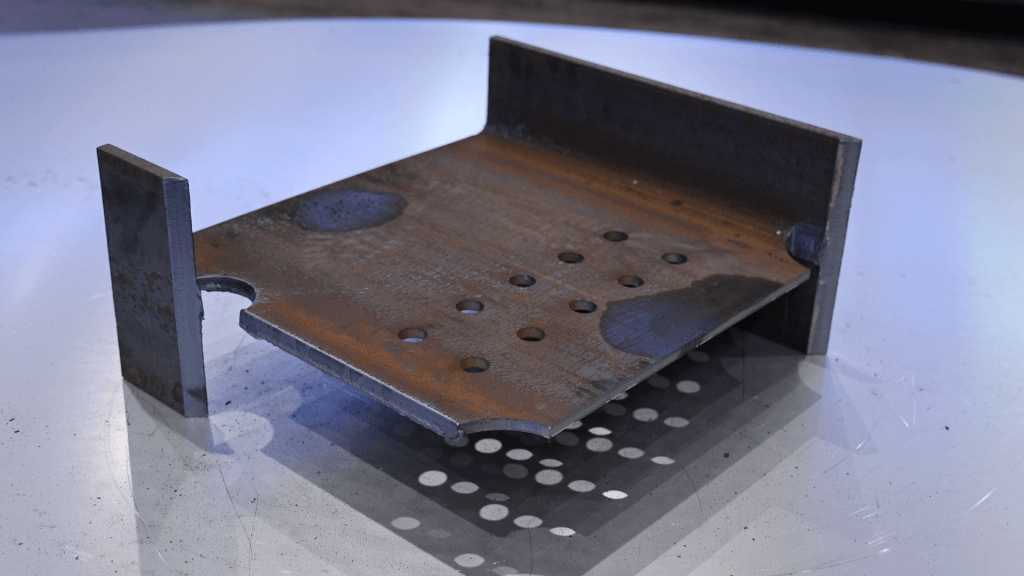

1).Construction industry: in bridges, high-rise buildings and other structures. Quickly and accurately cut out the required H-beam parts, improving construction speed and reducing costs.

2).Bridge manufacturing: Accurately cut out H-beams of various shapes and sizes, ensuring high precision and efficiency in bridge manufacturing.

3).Large-scale equipment manufacturing: cranes, excavators, etc., H-shaped steel is the main support and transmission structure material.

4).Metal products industry: automotive manufacturing, petrochemical, etc., to enhance the production efficiency of the industry.

Laser Tube Cutting Machine Price

The laser tube cutting machine price depends on the models and actual main parts, such as laser source, servo motor, reducer, controller, software, etc, even the same part from seperate suppliers have quite huge differences in price, eg, cost of China Raycus fiber laser is only 1/2 or even 1/3 of the cost of IPG fiber laser. Generally, the price of laser pipe cutter machines ranges from $20,000 to $180,000, depending on actual model & parts. Also, some other charges & fees will have to be taken into consideration, including shipping costs, tax and customs clearance, etc.

The price of H steel laser cutting machine ranges from $90,449.90  – $194,815.18. The price is different according to different power models. If you want to buy the most affordable and cheapest equipment, you can consult us.
