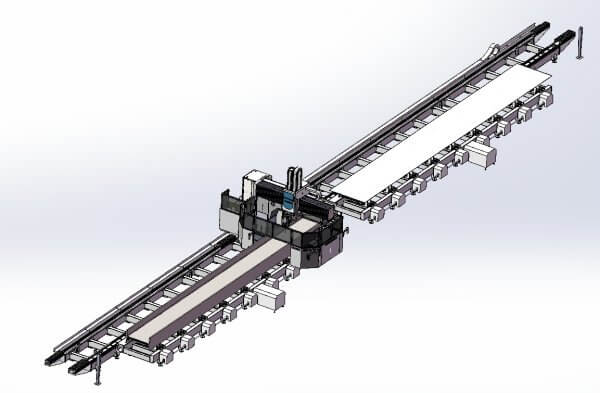

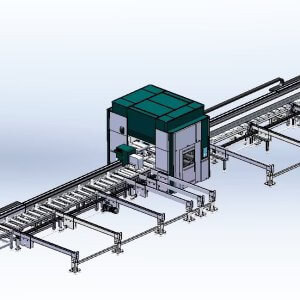

High Performance Steel Beam & Plate Combined 5 Axis 3D Fiber Laser Cutting Machine
The steel beam laser cutting machine is an automated CNC machining equipment specially developed to meet the industrial production of steel profile processing, it integrates laser cutting, precision machinery, intelligent detection and 3D five axis CNC technology, and can perfectly achieve the processing of both steel plates and different kinds of profiles, including H-beams, I-beams, channel steels, angle steels, etc., meeting the necessary processing works in modern steel structures and various profile applications, such as cutting, locking, beveling, marking, etc.
As an efficient solution, the steel beam fiber laser cutting machine has the advantages of powerful functions, high processing efficiency, high automation and labor-saving. Therefore, it is widely used in professional equipment manufacturing industries such as steel structures, petroleum, chemical, and marine engineering.
Steel Beam Laser Cutting Video:
Features of 5 Axis Fiber Laser Cutting Machine:
*Advanced three-dimensional technology, which can achieve different processing works of any end & shape of different steel profiles, such as cutting-off, hole cutting, lock cutting, bevel cutting, marking, etc. The cutting quality is good and the processing efficiency is high;
*The integrated modular design separates the cutting platform from the machine base, dispersing weight onto the ground. The structure is compact, stable and reliable, also, the working size can be customized according to customer needs.
*Open dual station structure, profiles can be directly transported into the cutting table for cutting, and then transported out after cutting is completed. At the same time, it allows continuous loading/unloading during processing at one station without stopping, greatly improving work efficiency.
*A professional profile cutting system, equipped with a rich database of cutting process parameters, can seamlessly connect Tekla and equipment nesting functions, providing efficient material saving, automatic sorting, precise cutting and other functions,
*Professional nesting software, supporting automatic contour detection and automatic centering and edge finding functions, can effectively avoid size errors and control cutting accuracy;
Techinical Parameters:
| Name | Parameters |
| Beam size | Flange: ≤500mm Web: ≤1,200mm Length:≤26,000mm (customized on demand) |
| Plate size | 26,000*2,500mm |
| Laser power | 12kw/15kw/20kw/30kw |
| X-axis travel | 26,000mm |
| Y-axis travel | 2,550mm |
| Z axis travel | 970mm |
| A-axis stroke (rotary axis) | ±90° |
| C-axis stroke (rotary axis) | ±45° |
| U axis travel (height adjustment axis) | ±40mm |
| Bevel cutting | ±45° |
| X/Y/Z max positioning speed | 30m/min |
| positioning accuracy | ≤0.1mm |
| Cutting Accuracy | ≤0.05mm |
| Single section steel** weight | 5,000kg |
3D Fiber Laser Cutting Machine Details:
1).The steel beam cutting machine takes the advanced BOCHU controller FSCUT9200, which is equipped with BCW laser profiler. It effectively detects and compensate for steel deformation, supports various cutting scenarios, enables fast drawing and efficient nesting, and promotes capacity upgrades in the steel structure industry.
2).This steel beam laser cutting machine adopts Tekla steel structure 3D modeling system which supports various tower connection forms bevel cutting processes
3).High quality fiber laser from top-rated suppliers, eg, Max., Raycus, etc, with extremely high electro-optic conversion efficiency (30%+), energy-saving and environmentally friendly; Excellent beam quality with higher work efficiency & better processing quality; Compact size, maintenance free and low running cost.
4).Dedicated laser cutting head with BC-axes and a laser profiler specifically for structural steel cutting power ranging from 6 to 40 kW. This combination features intelligent technologies such as gas pressure monitoring, window temperature monitoring, and collision protection. It can meet the processing requirements for steel flange beveling, web plate beveling, stitch-hole cutting, bolt-hole cutting, and more. The cutting performance is stable and the results are excellent. For more details, please refer to the product introduction.
5).The welding structure of heavy-duty machine is subjected to stress relief annealing followed by rough and precision machining, followed by secondary aging treatment to eliminate stress, prevent deformation, and be more durable. After high-temperature annealing and natural aging, welding stress is eliminated, effectively ensuring high speed, high precision, and high stability of the entire machine operation during high-speed cutting.
6).Top quality dual servo motor drive system, synchronous dual drive, effectively ensuring high speed, high precision during cutting and high stability of the entire machine operation.
Steel Beam Laser Cutting Projects:
Application of CNC beam cutting machine:
Applicable Material:
This steel beam laser cutting machine is specially used for cutting i beam & H beam, including H-beam, I-beam, channel steel, angle steel, etc, to achieve multi-functional cutting, slotting and opening, graphics and text, marking, bevel cutting Arc opening and other functions.
Applicable Industry:
The structural steel laser cutting machine can be widely used for metal fabrication in different industries, including:
1).Construction industry: bridges, high-rise buildings and other structures. Quickly & accurately cut out the required H-beam parts, improving construction speed and reducing costs.
2).Bridge manufacturing: Accurately cut out H-beams of various shapes and sizes, ensuring high precision and efficiency in bridge manufacturing.
3).Large-scale equipment manufacturing: cranes, excavators, etc., H-shaped steel is the main support and transmission structure material.
4).Metal products industry: automotive manufacturing, petrochemical, etc., to enhance the production efficiency of the industry.
Packaging & Delivery:
Compliance & Test Standards:
Customer Case:
1.An oil and gas service provider company in USA bought 2 sets of all in one CNC plasma pipe cutter machines for the pipe engineering, increasing the working efficiency by 50%.
2. A leading Steel Fabrication and Supply in Papua New Guinea bought 1 set of 8 axis CNC plasma tube cutting machine for steel structure fabrication, significantly increasing the working efficiency by 1 times with the labor cost remains the same;
Price Of steel beam and plate 5 axis fiber laser cutting machine:
FAQs About steel beam cutting machine:
Q: I have no idea of the CNC beam cutting machine, How can i decide which is the best machine to cut beam?
A: Our sales-team will communicate with you over working requirement and provide the best instruction, You just provide further detail as follows:
1).Type of your profile, round, square/rectangular, channel steel, H beam or others?
2).Material of your profile
3).Dimension of your material, including diameter range, length, wall thickness, etc
4).Max.cutting thickness & most common cutting thickness
5).is bevel cutting required?
Q:How can i check the machine quality & working performance?
A: You are welcomed to our factory whenever your time permits, also, you can ask your representative or partner here for you, will arrange discussion with technical team & inspection of the cutting performance. Besides, online technical service & support is available, our engineer will provide live video show around the factory and send the sample pictures and videos you want.
Q:What is the warranty time for the machine?
A: 2 years guarantee for the whole machine since delivery, during warranty period, any faulted part will be replaced for free, Not include consumables.
Q:How is the training policy for oversea customers?
A:User manual of different language venison will be sent with demo CDs & other document which will provide detailed training instructions on operation, maintenance, etc. Also, free training service can be provided. Your workers can get trained for free in our factory for 1-3 days, if on-site training & maintenance service are required, We will arrange local service within 48 hours.
Q:If the machine fails to work during use, how to do then?
A:Our after-sales team are available 7x24h for any problem during use, they will help judge the problem & provide troubleshooting via different means, including phone call, Whatsapp, Email, Skype, etc. Also, door-to-door service can be provided, if you need.
