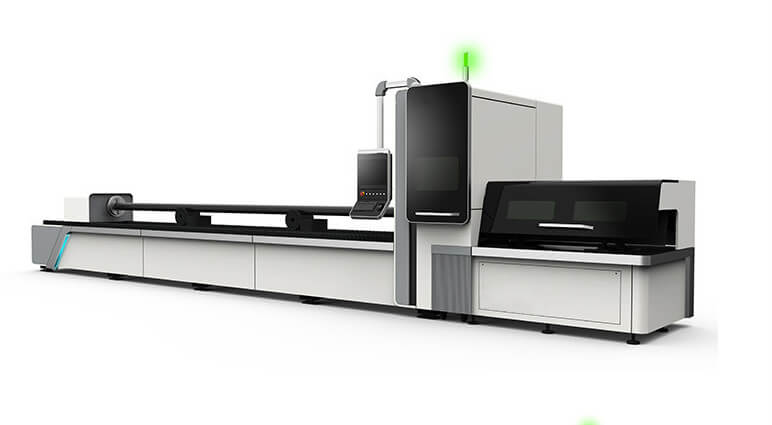

High Efficiency Metal Tube Laser Cutting Machine With 2kw/3kw/4kw Fiber Laser

metal tube laser cutting machine takes IPG 2kw fiber laser, other options of 3kw, 4kw etc are available, the cnc laser cutting machine for metal tube is characterized of high precision, easy operation and excellent performance, thu is ideal for metal fabrication works.

Metal Tube Laser Cutting Machine Video:

2kw fiber laser tube cutting machine Features:

1).The metal tube laser cutting machine takes heavy duty machine bed which is welded by steel pipe & plate, high temperature annealing treatment to eliminate welding stress, not easy to deform, more durable & stable;
2).The laser cutting metal tube machine is equipped with YASKAWA servo driving system, Taiwan Hiwin linear guide and high-precision gear racks, the installation surface is machined with CNC machine center, higher accuracy & more stable running performance;
3).Precitec/Raytools laser cutting head with automatic adjustment for tube laser cutting machine, follow-up system which has higher work efficiency & good processing quality; both IPG & Raycus fiber laser are available to guarantee the stable performance and cutting cutting capacity, cost-effective;
4).Professional pipe processing control system & nesting software, graphics can be directly imported, automatically identify cutting trajectories to guarantee the processing accuracy;
5).Advanced chuck system with automatic centering function, which can be applied to various pipes, and the tail is controlled within 5cm through the fixture.
6).Automatic loading system(optional) can save much labor cost and improve working efficiency; automatic unloading system(optional) can collect long-size workpieces to protect the them from damage, great increasing the working efficiency.

Techinical Parameters:

ItemSpecification
NameHigh Efficiency Metal Tube Laser Cutting Machine With 2kw/3kw/4kw Fiber Laser
ModelJSF-6020A
Pipe Length6000mm(8000mm/12000mm available)
Diameter RangeΦ20x20mm -Φ200x200mm;
Profile TypeRound, square, rectangular, oval, etc
Laser Power1000W/2000W/3000W/4000W/6000W, etc.
Cutting ThicknessUpon actual fiber laser source
Positioning Accuracy±0.03mm
Re-positioning Accuracy±0.02mm
Max.Loading Capacity1200KG
Automatic Loading SystemYes
Automatic Unloading SystemYes
Power Supply3-phase, 380V, 50Hz/60Hz

Laser Metal Tube Cuting Projects:

china pipe laser cutting machine sample laser pipe cutting machine sample 2china pipe laser cutting machine sample 3

lase Metal Tube Cutting Machine Application:

Applicable Profiles:
laser cutting machine for metal tube can be used for cutting & intersecting of various tubes such as round pipe, square tube, rectangular tube, U-shaped tube, elliptical tube, angle steel, channel steel, H beam, etc., the machine is suitable for different metal materials, including carbon steel, stainless steel, alloy steel, aluminum, copper, titanium, etc.
Applicable Industries:
metal tube cutting laser machine can be widely used in sports equipment, kitchen equipment, bathroom equipment, small hardware processing, auto parts processing, petroleum pipeline, furniture, props, clothing props display stand, medical equipment, steel furniture, door and window kitchen, steel furniture industry, etc.

Packaging & Delivery:



FAQs About metal tube laser cutting machine:

Q: Is the structure strong one or light duty type?
A: The machine body is reliable strong one which is welded by steel tube & plates, some are even casted ones, quite suitable for industrial purposes. Also, the mounting base surface for linear guides and racks is all precisely milled via a metalworking 5-axis CNC machining center.
Q: What is the cutting thickness?
A: The cutting thickness depends on actual power & material to be cut, 2 options of fiber laser sources are available: IPG and Raycus, and we will recommend some best model as soon as your thickness and material detail is well confirmed.
Q: Is there any consumable for the machine?
A: Consumables are quite necessary for fiber laser cutter, you can buy some consumables from us or buy from your local market, we can provide the consumable list.
Q: Is further installation required for oversea customers?
A: The machine is complicated equipment and further installation & commissioning are required. Our after-sales service team will be sent there for the service & support, you can also send your staff here to our factory for training on installation & operation;
