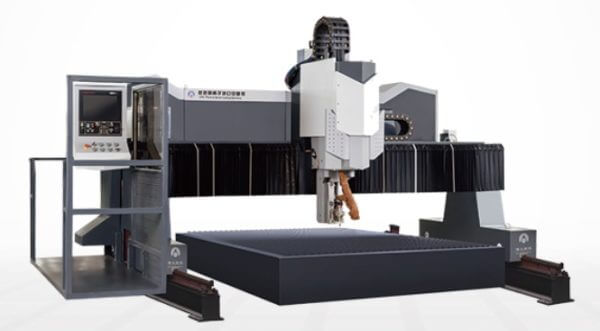

Industrial-purpose 5 Axis CNC Plasma Bevel Cutting Machine for Sale

Top quality CNC plasma bevel cutting machine for sale, this gantry cnc plasma machine takes 5 axis rotary system which can carry out 3d bevel cutting of different shapes, including I, V, X, K, characterized of advanced functions, high working efficiency and excellent performance, thus this 5 axis cnc plasma bevel cutting machine is ideal for industrial-grade metal fabrication.

Introduction:

This CNC plasma bevel cutting machine is a kind of high efficiency steel plate cutting equipment for industrial metal fabrication, it takes advanced 5 axis plasma head system which can carry out unlimited rotary bevel cutting by plasma torch, also, oxy-fuel torh system can be available for linear bevel cutting, thus this 5 axis cnc plasma cutting machine is ideal for ordinary plane cutting and different groove cutting works. This industrial CNC plasma cutting machine has the advantages of good rigidity, high accuracy and stable working performance, thus is widely used in different metal fabrication fields, including shipbuilding, heavy machinery, chemical equipment, boiler manufacturing, locomotive vehicles, petrochemical industry and other manufacturing industries.

Plasma Bevel Cutting Machine Video:

Main Features:

1).Strong machine structure with hollow beam design ensures good heat dissipation without deformation;
2).Working size of this 5 axis cnc plasma cutting machine can be customized upon the actual working requirement;
3).Double-side servo motor driven for this cnc plasma bevel cutting machine to ensure the high speed & accurate running;
4).Advanced CNC control system & nesting software to guarantee the high working efficiency & excellent working performance;
5).High quality main parts from worlds top-rated suppliers, eg, USA Hypertherm plasma cutter, Panasonic servo system, Germany Neugart reducer, Taiwan Hiwin guide rails, etc;
6).3D bevel cutting function by plasma & oxy-fuel cutting torch is available.

Techinical Parameters:

Name5 Axis CNC Plasma Bevel Cutting Machine for Sale
Effective cutting width2-8m(upon working requirement)
Effective cutting length6-20m(upon working requirement)
Lifting height of torchupon working requirement
Cutting modePlasma cutting/Plasma cutting + flame cutting
Plasma cutting thicknessUpon actual models of plasma source
Flame cutting thickness6-150mm
Length positioning accuracy0.3mm/2000mm
Angle positioning accuracy0.1-0.2°/360°
Bevel shapeI, V, X, K, etc.
Bevel cutting angle-45° to +45°
Driving modebilateral-side-driven
Working Voltage380V/3-phrase, 220V

Machine Detail:
1). Heavy duty gantry type machine structure

2).Advaned & dedicated CNC control system
3).Japan Panasonic servo system
panasonic servo system
4).3D rotary system

5).USA Hypertherm Plasma source

Plasma Bevel Cutting Projects:

CNC Plasma Bevel Cutting Machine Application:

Applicable Material:

This cnc plasma bevel cutting mahine can be used for different metal materials, including carbon steel, stainless steel, alloy steel, metal, copper, aluminum, titanium, galvanized steel, etc.

Applicable Industry:

This induistrial cnc plasma cutting machine can be widely used for different kinds of industries, including advertising, shipbuilding, construction equipment, transportation equipment, aerospace industry, bridge building, military industry, wind power, structural steel, boiler container, agriculture machinery, elevator, environmental protection equipment, etc.

Packaging & Delivery:



FAQs About 5 Axis CNC plasma cutting machine:

Q: What is the warranty policy for the 5 axis cnc plasma bevel cutting machine?
A: For standard models, this machine generally has 1-1.5 year warranty.
Q: Does plasma cutter come together with the machine and which model will it be?
A: The plasma cutter can be provided, if required, different options of plasma power sources are available, including USA Hypertherm, Germany Kjellberg and China local brand, and the model & power will depend on actual material & thickness.
Q: Is there any consumable for the plasma cutter?
A: Consumables are quite necessary for plasma cutter, you can buy some consumables from us or buy from your local market, we can provide the consumable list..
Q: Can further installation required for oversea customers?
A: The machine will have to be dismantled for the convenience of loading in container & transportation, thus further installation is quite necessary, but the re-installation will be simple and instruction will be provided along with the machine, also, the engineers can be sent for installtion & commisioning in your factory, if required, there is no reason to worry about that.
Q: How about the working voltage? Can the industrial cnc plasma cutting machine work well under our power supply?
A: It totally depends on the plasma cutter. Only low-power plasma generators like Huayuan 63amp and Hypertherm 45amp can work with 220V, and other models cannot. You can consider using transformers or phase converters as a solution.
