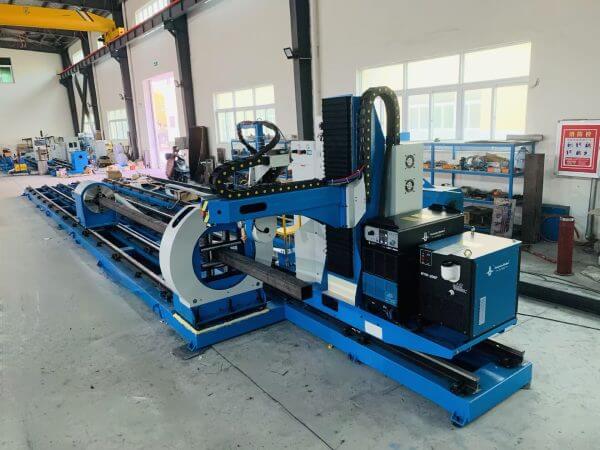

All-in-one CNC Plasma Beam Cutting Machine for Steel Frames & Trusses
Working Video of Plasma Beam Cutting Machine:
Features of CNC Plasma Beam Cutter:
1).Strong structure with an integral welded bed body for the CNC plasma beam cutting machine, which has undergone deformation treatment and precision machining to ensure the smoothness and big loading capacity.
2).The cnc beam cutting machine adopts an industrial personal computer(IPC) system controlled by ETHERCAT bus. The system comes with cutting modules for different profiles, which can be directly accessed and used. By inputting cutting requirements and material parameters, cutting operations can be directly carried out without programming. Capable of supporting tekla modeling (additional single paired nested parts need to be specified during procurement)
3).Industrial grade explosion-proof five-wire resistance touch screen, fully shielded, anti electromagnetic radiation, anti-interference, and synchronized 3D display and cutting.
4).The front and rear chucks adopt a pair of dedicated square chucks with self centering function. During cutting, the four claws work synchroniouly, and the cutting gun can skip the square chuck to the end of the rear chuck for cutting to achieve zero-tailing cutting function.
5).The swinging gun shaft adopts a TCP mechanical structure, the A-axis and B-axis ensure a smooth and stable cutting without shaking, ensuring high cutting accuracy;
6).The cutting gun is equipped with a strong magnetic suction anti-collision function. When cutting, it will alarm and detach from the magnetic suction arm in case of collision to avoide damage to the mechanical structure and cutting gun;
7).Unique synchronous support system can provide precise support to avoid sagging deformation caused by excessive material length
8).Top quality parts & components to ensure long service life and excellent performance, such as Hypertherm plasma cutter, Yasakawa servo, Hiwin guide rail, etc;
Techinical Parameters:
| Item | Specification |
| Name | All-in-one CNC Plasma Beam Cutting Machine for Steel Frames & Trusses |
| Diameter range | Round: Φ60-630mm(with bevel cutting); Square: 60-400mm(with bevel cutting); H beam: 100-400mm(no bevel cutting); Channel steel: 100-400mm(no bevel cutting); Angle steel: 100-400mm(no bevel cutting); |
| Pipe length | 12m(customizable) |
| Cutting mode | Plasma cutting, oxyfuel cutting |
| Cutting thickness | In terms of plasma source |
| Cutting speed | 10-6,000 mm/min |
| Moving speed | 0-8,000 mm/min |
| Working precision | 0.1mm |
| Reposition precision | 0.03mm |
| Max loading weight | 3,000Kg |
| Quantity of axis | 8 axis |
| Bevel cutting angle | ±45° |
| Ambient temperature | -10 º C – 45 º C |
| Ambient humidity | Less than 80%, no condensation |
| Power supply | 380V± 10%, 50Hz, 220V± 10%, 50Hz |
Cutting Steel Beam Projects:
Application of CNC plasma beam cutter machine:
Applicable Material:
This CNC steel beam cutter machine can be used for a variety of profiles, including round, square, rectangular, angle steel, C channel, H/I beam, etc.
Applicable Industry:
The CNC steel beam plasma cutting machine can be widely used for metal fabrication in different industries, including shipbuilding, construction, transportation equipment, aerospace industry, bridge building, military industry, wind power, structural steel, boiler container, agriculture machinery, elevator, environmental protection equipment, etc.
Compliance & Test Standards:
Packaging & Delivery:

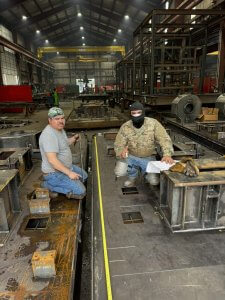

Customer Case:
1.An oil and gas service provider company in USA bought 2 sets of all in one CNC plasma pipe cutter machines for the pipe engineering, increasing the working efficiency by 50%.
2. A leading Steel Fabrication and Supply in Papua New Guinea bought 1 set of 8 axis CNC plasma tube cutting machine for steel structure fabrication, significantly increasing the working efficiency by 1 times with the labor cost remains the same;
Price Of All-in-one CNC plasma beam cutting machine:
The cost of an all-in-one CNC plasma beam cutting machine typically ranges from $35,000 to $80,000+ USD, depending on:
*Cutting technology (Plasma only, flame only, or combined)
*Number of cutting stations (single or multi-torch)
*Beam/rail length (e.g., 12m, 24m, or longer)
*Plasma power source (e.g., 120A, 200A, 300A-higher amps cost more)
*CNC control & software (basic vs. advanced nesting / bevel cutting)
For an exact quote, you would need to specify: beam size range, plate thickness, required cutting speed, and optional features (e.g., bevel cutting, marking, material handling).
FAQs About CNC beam cutting machine:
Q: I have no idea of the CNC plasma beam cutting machine, How can i decide which is the best machine for my work?
A: Our sales-team will communicate with you over working requirement and provide the best instruction, You just provide further detail as follows:
1).Type of your profile, round, square/rectangular, channel steel, H beam or others?
2).Material of your profile
3).Dimension of your material, including diameter range, length, wall thickness, etc.
4).Max.cutting thickness & most common cutting thickness.
5).is bevel cutting required?
Q:How can i check the machine quality & working performance?
A: You are welcomed to our factory whenever your time permits, also, you can ask your representative or partner here for you, will arrange discussion with technical team & inspection of the cutting performance. Besides, online technical service & support is available, our engineer will provide live video show around the factory and send the sample pictures and videos you want.
Q:What is the warranty time for the CNC plasma beam cutter machine?
A: 2 years guarantee for the whole machine since delivery, during warranty period, any faulted part will be replaced for free, Not include consumables.
Q:How is the training policy for oversea customers?
A:User manual of different language venison will be sent with demo CDs & other document which will provide detailed training instructions on operation, maintenance, etc. Also, free training service can be provided. Your workers can get trained for free in our factory for 1-3 days, if on-site training & maintenance service are required, We will arrange local service within 48 hours.
Q:If the machine fails to work during use, how to do then?
A:Our after-sales team are available 7x24h for any problem during use, they will help judge the problem & provide troubleshooting via different means, including phone call, Whatsapp, Email, Skype, etc. Also, door-to-door service can be provided, if you need.
