High Efficiency CNC Laser Pipe Cutting Machine with Loading & Unloading System
The automatic loading & unloading laser pipe cutting machine is a high-end CNC equipment that integrates laser cutting technology and automated loading & unloading systems, it is specially designed for efficient and precise cutting of different steel profiles, including round, square, rectangular, irregular, C channel, H/I beam, etc. By integrating automated loading and unloading systems with high-precision laser cutting technology, the production efficiency is greatly improved, labor costs are reduced, and this CNC laser pipe cutter machine is suitable for industrial scenarios with batch production and complex process requirements.
Laser Pipe Cutting Video:
Features of Laser Pipe Cutting Machine:
1.Laser cutting system

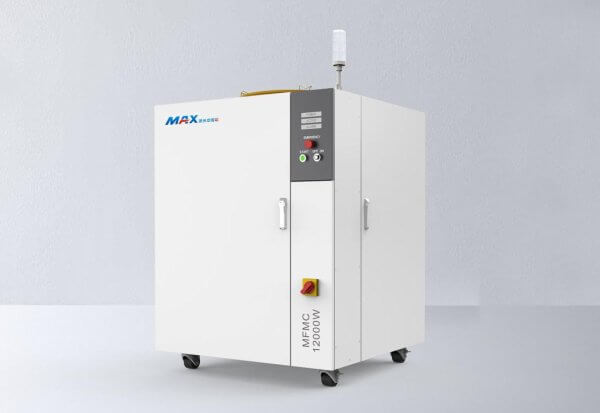

*Laser source: High performance fiber lasers (such as IPG, Raycus, etc.) with a power range of 1kW-20kW, suitable for cutting various steel profiles;
2.High precision laser cuttingsystem
*Laser source: Using fiber laser, it can cut various metals such as carbon steel, stainless steel, aluminum alloy, copper, etc;
*Laser cutting head: equipped with automatic focusing and capacitive tracking system, real-time monitoring of cutting distance to ensure stable cutting of complex contours;
*Multi axis linkage: supports 360 °rotation cutting of pipes, completing complex processes such as beveling, oblique cutting, and irregular holes;

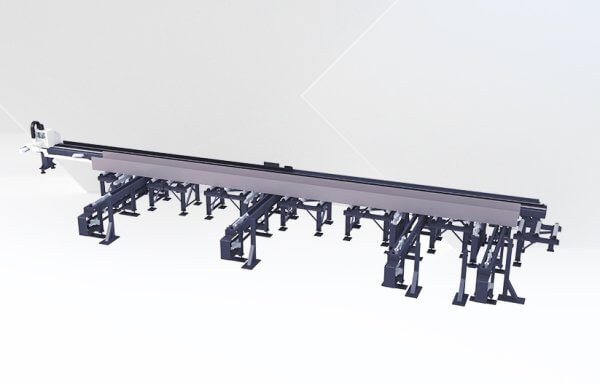

3.Fully automatic loading & unloading system
*Composed of material preparation and storage, automatic loading, clamping, positioning, and automatic unloading, the entire production process can be completed independently without manual intervention, greatly improving work efficiency;
*Sorting and cutting: After cutting is completed, the finished products and waste materials are automatically separated for further process;

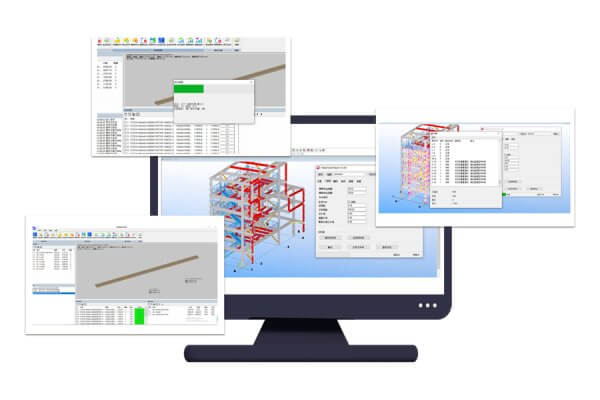

4.Numerical Control System8 software
*A professional profile cutting system, equipped with a rich database of cutting process parameters, can seamlessly connect Tekla and equipment nesting functions, providing efficient material saving, automatic sorting, precise cutting and other functions;
*Professional nesting software, supporting automatic contour detection and automatic centering and edge finding functions, can effectively avoid size errors and control cutting accuracy;
Technical Parameters:
| Item | Specification |
| Profile type | Round, square, rectangular, irregular, C channel, H/I beam, etc. |
| Laser power | 3kW-20kw |
| Tube diameter range | Φ10mm-Φ450mm(can be customized) |
| Tube length | Max 12m(can be customized) |
| Cutting speed | Max 20m/min |
| Positioning accuracy | ±0.05mm |
| Re-positioning accuracy | ±0.03mm |
| Bevel cutting | Optional |
| Power supply | 3-phase, 380V, 50Hz |
*All technical parameters are subject to the provided technical solution
Advantages of Fiber Laser Pipe Cutting Machine:
1. Efficient automation
-The entire process of loading and unloading is unmanned, and a single machine can replace 3-5 workers. It can produce continuously 24 hours a day, increasing efficiency by more than 50%.
-Support the “cutting while feeding” mode, seamlessly connecting the processing flow and reducing idle time.
2. Ultra high precision and flexibility
-The cutting accuracy is ±0.1mm, and the incision is smooth without burrs, meeting the requirements of high-precision industries such as aerospace and automotive.
-Supports complex shapes such as threaded holes, fish scale patterns, and text carving, as well as multi angle bevel cutting (± 45 °).
3. Wide adaptability
-Pipe diameter range: Φ10mm-Φ450mm, Wall thickness of 0.5mm-20mm (depending on material and laser power).
-Compatible with multiple materials: carbon steel, stainless steel, aluminum alloy, brass, titanium alloy, etc.
4. Energy conservation and environmental protection
-The photoelectric conversion efficiency of fiber laser is greater than 30%, and the energy consumption is only one-third of that of traditional CO2 laser equipment.
-Equipped with a dust removal system (optional filter cartridge or wet type), with a smoke and dust purification efficiency of ≥ 99%.
Laser Pipe Cutting Projects:
Application:
The automatic laser pipe cutting machine adopts advanced 3D six axis technology, which can achieve different processing such as cutting off, hole cutting, lock cutting, beveling, marking, etc. of any end and shape of round, square, H/I beam, channel steel and other profiles. The cutting quality is good and the processing efficiency is high. It is widely used in various metal pipe processing industries:
1.Mechanical manufacturing: tubular structural components such as engineering robotic arms, hydraulic cylinders, and transmission shafts.
2.Automotive industry: exhaust pipes, chassis frames, seat frames, new energy battery enclosures.
3.Furniture decoration: metal table and chair frames, stair handrails, artistic shaped pipes.
4.Energy equipment: oil pipelines, solar brackets, nuclear power pipe fittings.
5.Aerospace: high-precision cutting of titanium/aluminum alloy pipes.
Packaging & Delivery:
Compliance & Test Standards:
Customer Case:
1.An oil and gas service provider company in USA bought 2 sets of all in one CNC plasma pipe cutter machines for the pipe engineering, increasing the working efficiency by 50%.
2. A leading Steel Fabrication and Supply in Papua New Guinea bought 1 set of 8 axis CNC plasma tube cutting machine for steel structure fabrication, significantly increasing the working efficiency by 1 times with the labor cost remains the same;
After-sales Service & Support:
-Free installation and debugging: Professional technical team on-site installation to ensure optimal equipment operation.
-Operation training: Provide software operation, daily maintenance, and troubleshooting system training.
-Quality assurance policy: The entire machine is guaranteed for 1 year, and the laser is guaranteed for 2 years (specific details subject to the contract).
-Quick response: National service outlets provide remote or on-site technical support within 24 hours.
Laser Pipe Cutting Machine Price
fgf
After-sales Service & Support:
-Free installation and debugging: Professional technical team on-site installation to ensure optimal equipment operation.
-Operation training: Provide software operation, daily maintenance, and troubleshooting system training.
-Quality assurance policy: The entire machine is guaranteed for 1 year, and the laser is guaranteed for 2 years (specific details subject to the contract).
-Quick response: National service outlets provide remote or on-site technical support within 24 hours.
Laser Pipe Cutting Machine Price
The CNC laser pipe cutting machine price ranges from $40,000 to $150,000. It depends on the exact working requirements and the actual machine configuration. Get in touch with us if you want to get the latest technical offer of the Steel pipe laser cutting machine.
