In the world of structural steel fabrication, the accuracy of every cut is paramount. H-beams and I-beams form the skeleton of modern infrastructure, from skyscrapers and bridges to industrial plants. How these vital components are cut and prepared directly impacts the strength, safety, and efficiency of the entire structure
For project managers, engineers, and procurement specialists, understanding the intricacies of beam cutting is crucial for ensuring project quality and timelines. This article delves into the common cutting processes for H-beams and I-beams and explores the significant challenges fabricators face in achieving perfection.
Essential Cutting and Fabrication Processes for Beams
The cutting of beams goes far beyond simply slicing them to length. It involves a series of precise operations which are typically performed to achieve connections between components, allow for the passage of other elements, or meet architectural design requirements.

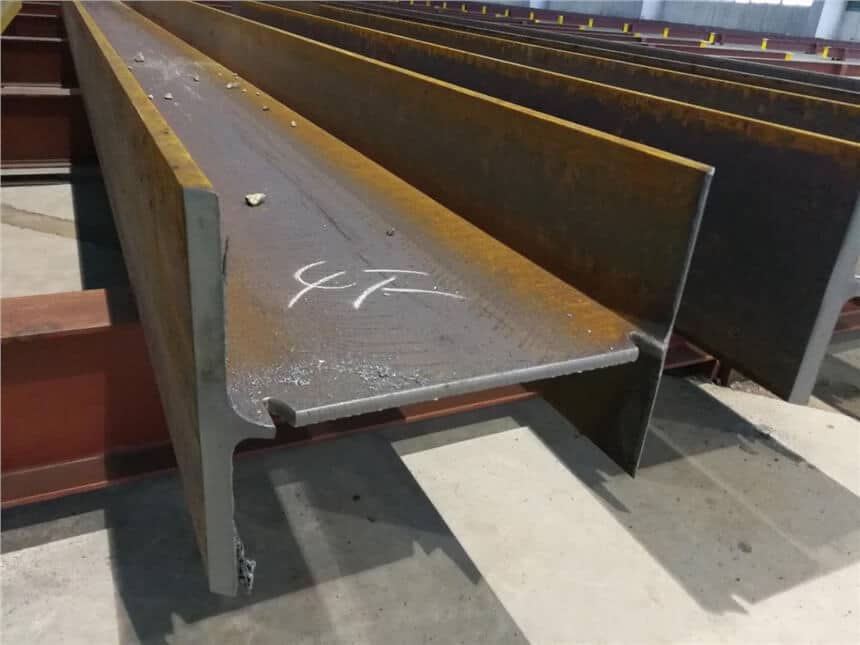

1.Conventional Cutting/Blank Preparation
To cut raw materials (usually standard lengths of 12 or 15 meters) into the required component lengths according to design drawings.
·Methods: Using flame cutting, plasma cutting, or band saws for straight or beveled end cuts.
2.Beveling (Edge Preparation)
To ensure complete penetration and form high-quality welds for butt or fillet welds.
Common Types:
·Square Groove (I-Bevel): Used for butt welding thin plates.
·V-Groove: The most common type, involving a single-bevel cut on the edge of the web or flange.
·X-Groove: Used for thicker plates, involving double-bevel cuts on both sides of the web.
·K-Groove: Primarily used for welding H-beams to end plates or brackets, involving an asymmetric cut at the junction of the flange and web.
Processing Methods: Dedicated beveling robots or flame/plasma cutting machines with beveling capability.
3.Web Openings/Holes
·Cope Holes / Weld Access Holes: Made at beam-column connections or primary-secondary beam connections to allow the continuous welding of a secondary beam’s flange.
·Rebar Passage Holes: In composite structures, to allow reinforcing bars or prestressing tendons to pass through during concrete pouring.
·Service Penetration Holes: For the passage of building utilities such as pipes or cable trays.
· Ventilation / Lightening Holes: To meet functional requirements or reduce structural self-weight.

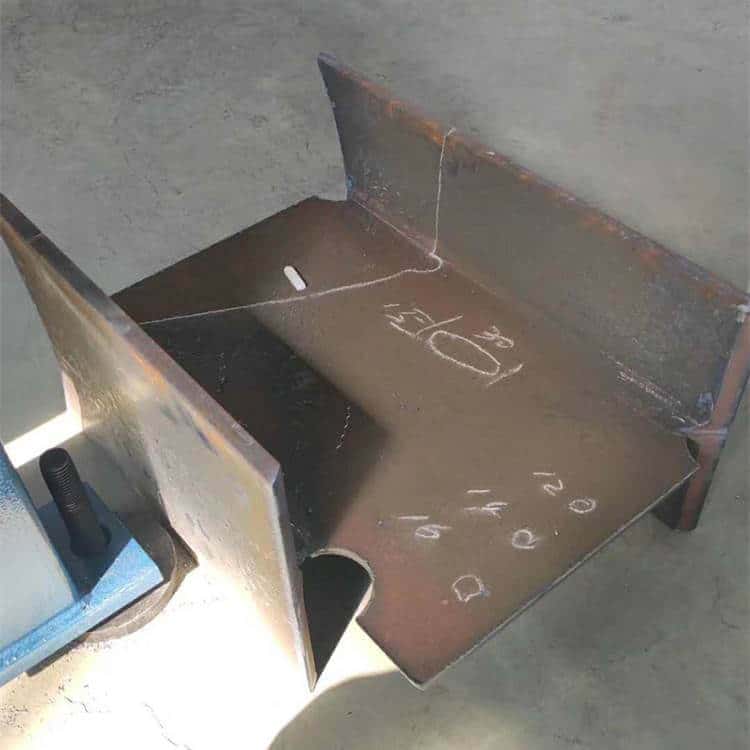

4.Flange Cutting
·Bolted Connections: Cutting slotted holes or round holes in the flange for high-strength bolted connections.
·Tapered Section Fabrication: Creating “fish-belly beams” or tapered members requires continuous angled or curved cuts along the flange.
·Relief Cuts / Notching: To avoid clashes with adjacent members, involving localized “clipping” of the flange.
5.End Finishing/Profiling
For precise connection to end plates, splice plates, or other components.
·Content: Includes not only end cutting but may also involve milling the end flat to ensure a planar contact surface and uniform load transfer. Uses facing machines.

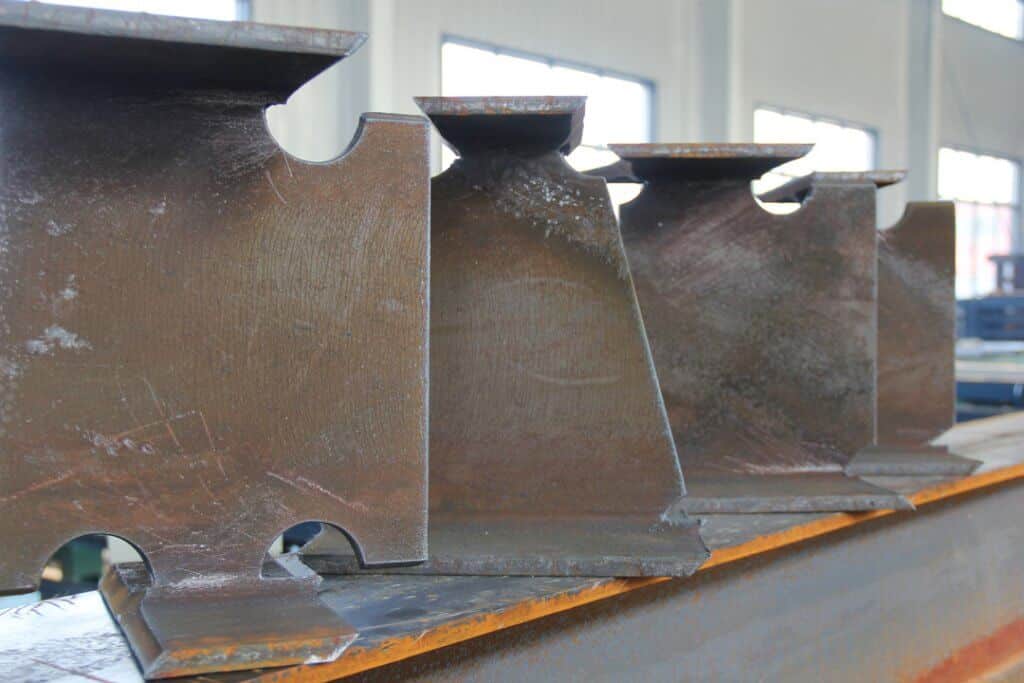

6.Coping / Notching (at web-flange junction)
To prepare for welding or avoid stress concentration, by cutting a small curved notch at the junction of the web and flange.
7.Grout Holes / Vent Holes
In concrete-filled tubular columns or composite columns, where concrete is cast between the flanges of the H-beam, holes are cut in the flange plate for this purpose.
The Critical Challenges & Pain Points in Beam Cutting
Achieving flawless cuts on H-beams and I-beams is fraught with difficulties. Recognizing these pain points is the first step toward mitigating them.
1.Managing Thermal Distortion
·The Problem: Oxy-fuel and plasma cutting generate intense, localized heat. This causes the steel to expand and contract unevenly, leading to warping, bowing, or twisting of the beam. This thermal distortion is a primary concern as it compromises dimensional accuracy.
·The Impact: Distorted beams are difficult to fit during erection, requiring costly and time-consuming on-site rework or forceful alignment, which can introduce unwanted stress into the structure.
2.Ensuring Dimensional Accuracy and Consistency
·The Problem: Beams are three-dimensional elements. A cut on one part (e.g., the flange) can affect the geometry of another (e.g., the web). Maintaining perfect perpendicularity, accurate hole patterns, and consistent cope depths across hundreds of beams is a significant challenge.
·The Impact: Even minor inaccuracies can lead to fit-up issues during assembly. Gaps that are too large or misaligned bolt holes delay construction and can weaken the intended connection.
3.Complex Node Detailing
·The Problem: Modern steel structures often feature complex connections where multiple beams meet. Programming a cutting machine to create the necessary copes, welds, and holes for these 3D nodes requires advanced software and highly skilled operators.
·The Impact: A single programming error can render an expensive beam unusable, leading to material waste and project delays.
4.Achieving High-Quality Weld Preparation
·The Problem: Many cuts, especially end preparations and copes, require beveling to create a weld groove. The angle, depth, and smoothness of this bevel are critical for achieving full-penetration welds and ensuring joint strength.
·The Impact: A poorly executed bevel can lead to incomplete fusion, slag entrapment, and other weld defects, creating potential failure points in the structure.
5.Balancing Efficiency with Quality
·The Problem: Fabrication shops are under constant pressure to deliver projects faster and at a lower cost. However, rushing the cutting process often leads to quality compromises, increased scrap rates, and more rework.
·The Impact: The false economy of speed can result in higher overall costs and damage to a fabricator’s reputation for reliability.
How JeesunCNC Overcomes These Challenges
At JeesunCNC, we understand that precision in cutting is non-negotiable. We invest in technology and expertise to turn these industry pain points into our strengths.
·Advanced CNC Technology:
Our state-of-the-art CNC beam drilling and cutting lines automate the process, ensuring millimeter-perfect accuracy and repeatability on every beam, every time.
·Expert Process Control:
Our experienced technicians meticulously control cutting parameters—from heat input to speed—to minimize thermal distortion.
·Integrated Software Workflow:
We utilize advanced 3D modeling and nesting software to simulate cuts and prevent errors before they happen, ensuring that even the most complex nodes are fabricated correctly.
·Rigorous Quality Assurance:
Every cut is inspected against strict quality standards, guaranteeing that our products meet the precise specifications for a seamless and secure fit on your job site.
