With the advancement of technology and the increasing demand for sheet metal processing, the metal laser cutting machine has become an indispensable and important production equipment in the field of sheet metal processing.
While metal laser cutting offers incredible speed and accuracy, slag formation remains a common challenge impacting cut quality, part functionality, and post-processing costs. Hanging slag not only affects the appearance and dimensional accuracy of the product, but also increases the subsequent polishing cost, and even leads to customer returns. According to statistics, slag hanging accounts for over 30% of the quality issues in laser cutting, becoming a key factor restricting processing efficiency and product quality.
Understanding its root causes is the first step towards elimination. Let’s delve deep into why slag dross occurs and provide actionable solutions.
Understanding Slag: More Than Just Molten Metal

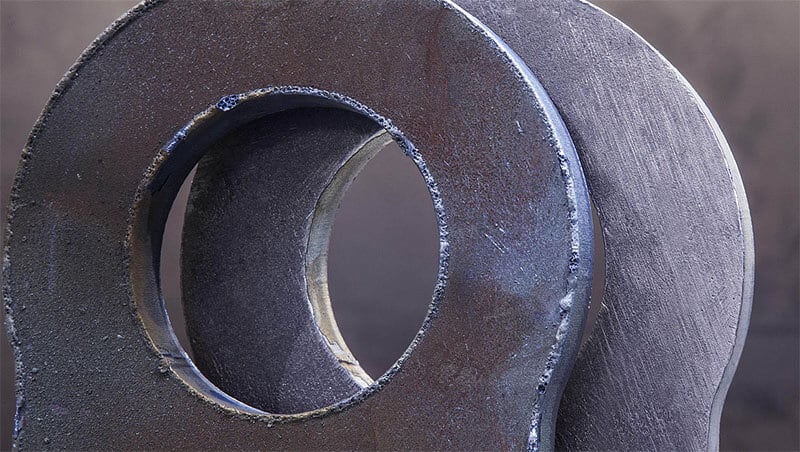

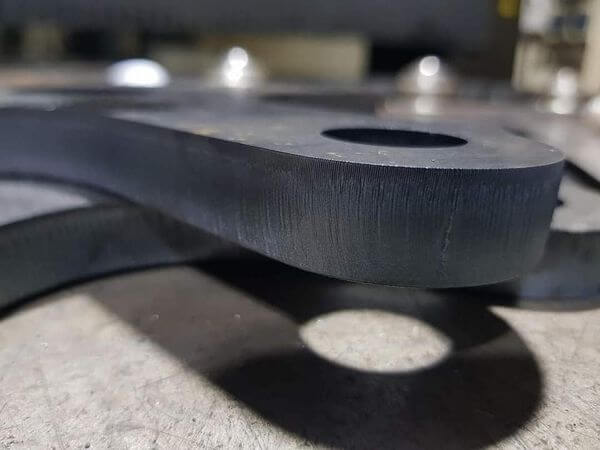

Dross, also known as hanging slag or burr, forms when molten material generated during the cutting process fails to be completely ejected from the kerf (the cut path) by the assist gas. Instead, it resolidifies on the underside of the workpiece. The severity can range from a light, easily removable coating to a hard, tenacious bead requiring significant secondary operations like grinding or machining.
Why Dross Happens in Fiber Laser Cutting: A Root Cause Analysis
Dross formation is rarely due to a single factor; it’s usually a combination of interdependent variables:
1.Incorrect Cutting Parameters:
*Laser Power: Too low power fails to generate sufficient energy to melt the material thoroughly and consistently through the thickness. Incomplete melting leads to viscous material that doesn’t eject cleanly, causing dross. *Conversely, excessive power can widen the kerf excessively or create excessive melt, overwhelming the assist gas.*
*Cutting Speed: This is *critical*. Cutting too fast is a primary culprit. The laser beam doesn’t dwell long enough on the material to melt it completely through the entire thickness before moving on. This results in a “tearing” effect where the trailing edge of molten material cools and sticks as dross. Cutting too slow can cause excessive melting and overheating, creating a larger molten pool that the assist gas struggles to clear effectively, also leading to dross (often a different type -see below).
*Focus Position: The focal point’s position relative to the material surface dramatically affects energy density and kerf shape. An incorrect focus (too high or too low) widens the kerf unevenly, reduces energy density at the cutting front, and hinders effective melt ejection. Finding the optimal focal point (often slightly below the surface for thick materials) is essential for a clean, dross-free cut.
2.Assist Gas Issues:
*Insufficient Pressure/Flow:
The assist gas (Oxygen, Nitrogen, or Air) has two critical jobs: exothermic reaction/blowing (Oxygen) or inert blowing/protection (Nitrogen/Air) and molten metal ejection. If the gas pressure or flow rate is too low, it lacks the kinetic energy to blow the molten material completely out of the kerf before it resolidifies.
* Incorrect Gas Type:
-Oxygen (O2): Primarily used for carbon steel. It creates an exothermic reaction, boosting cutting speed and energy. However, the resulting oxide slag can be particularly hard and tenacious if parameters are off. Low pressure/speed exacerbates this.
-Nitrogen (N2): Used for stainless steel, aluminum, and other non-ferrous metals where an oxide-free edge is required. It relies purely on kinetic energy to eject molten metal. High pressure and purity are crucial. Insufficient pressure leads to viscous dross clinging to the edge.
-Compressed Air: A cost-effective alternative for thinner mild steel but generally more prone to dross, especially on thicker materials or with lower air quality (moisture/oil), due to lower purity and potential oxidation.
*Poor Gas Purity/Contamination:
Moisture, oil, or particulates in the gas lines reduce its effectiveness. Contaminated Nitrogen loses its inert properties, leading to oxidation and harder dross. Moisture in Oxygen or Air cools the cut zone prematurely, hindering melt flow.
*Damaged or Incorrect Nozzle:
-Damage: A chipped, dirty, or misaligned nozzle disrupts the laminar flow of the assist gas. Turbulence reduces gas velocity and ejection efficiency at the critical cutting point.
-Incorrect Size/Diameter: A nozzle too small restricts gas flow, limiting pressure and velocity. A nozzle too large diffuses the gas stream, reducing its focused energy and ability to effectively clear the kerf. The nozzle standoff distance (gap to workpiece) is also crucial.
3.Material Factors:
*Material Type & Grade:
Different alloys have vastly different melting points, thermal conductivity, viscosity when molten, and oxidation tendencies. Stainless steel (especially grades like 304/316) and aluminum are notoriously more prone to dross than mild steel due to higher viscosity and/or tenacious oxide layers. Alloying elements significantly influence dross behavior.
*Material Thickness:
Thicker materials present a greater challenge. Maintaining sufficient energy density through the depth while ensuring adequate gas flow and pressure to clear the longer kerf becomes harder. Dross is more common on thicker cuts.
*Surface Condition:
Rust, mill scale, paint, oil, grease, or plastic protective films on the material surface absorb laser energy, interfere with the cutting process, create uneven heating, and contaminate the melt pool, increasing dross formation.
*Internal Stress:
Material with high internal stress (e.g., from previous processing) can warp or distort during cutting, changing the kerf geometry and standoff distance, hindering gas flow and leading to dross in localized areas.
4.Machine Condition & Setup:
*Beam Quality/Delivery:
A degraded laser beam (misaligned optics, dirty lenses, damaged fiber cable end) reduces power density and focusability, leading to poor cut quality and dross.
*Nozzle Alignment & Standoff:
The nozzle must be perfectly coaxial with the laser beam and perpendicular to the workpiece. Incorrect alignment directs the assist gas inefficiently. An inconsistent standoff distance (due to a warped bed, uneven material, or poor levelling) causes gas pressure fluctuations and dross patches.
*Machine Bed Condition:
Slats that are worn, bent, or heavily coated with slag can obstruct gas flow underneath the material, preventing clean melt ejection and causing dross buildup. Slag buildup on the underside of the workpiece itself acts as a barrier.
Distinguishing Dross Types: A Diagnostic Clue
*Low-Speed Dross (Crown Dross):
Often appears as a rounded, crown-like bead. Caused by cutting too slowly, leading to excessive melting. Common with Oxygen cutting on carbon steel.
*High-Speed Dross (Spatter Dross):
Appears as sharp, jagged spikes or spatter clinging to the edge. Caused by cutting too fast, resulting in incomplete melting and tearing. Common with Nitrogen cutting on stainless steel or aluminum.
*Hard, Tenacious Dross:
Often associated with incorrect gas (low pressure/purity, especially N2 on SS/Al), severe parameter mismatch, or poor material condition.
*Soft, Porous Dross:
Often linked to contaminated assist gas (moisture/oil) or excessive power/slow speed causing boiling and gas entrapment in the melt.
Comprehensive Solutions: Achieving Dross-Free Cuts
Tackling dross requires a systematic approach. Start simple and escalate complexity:
1.Optimize Cutting Parameters:
*Conduct Parameter Trials:
Use your machine’s parameter database as a starting point, but always perform test cuts on the *actual* material batch. Adjust power, speed, and focus incrementally.
*Focus on Speed:
If dross is present, gradually reduce the cutting speed until it disappears. Conversely, if cutting slowly causes excessive melting/dross, increase speed.
*Fine-Tune Focus:
Experiment with focus position adjustments in small increments (e.g., 0.2mm steps). Refer to your machine manual for optimal starting points for different materials/thicknesses.
*Adjust Power:
Increase power if cut is incomplete or dross is spiky (high-speed type). Decrease power if dross is heavy and crown-like (low-speed type) or if excessive melting/spatter occurs.
2. Master the Assist Gas
*Verify Pressure & Flow:
Check pressure gauges and flow meters. Increase pressure incrementally (especially for Nitrogen cuts) while monitoring dross reduction. Ensure regulators and flow valves are functioning correctly. *Consult machine/material-specific recommended pressure ranges.*
*Ensure Gas Purity:
Use high-purity Nitrogen (≥99.95% or ideally ≥99.99% for stainless/aluminum). Ensure Oxygen is dry. Install and maintain proper filters (coalescing, desiccant) in gas lines to remove moisture and oil. Regularly drain compressor tanks if using shop air.
*Select the Correct Gas:
Use Oxygen for carbon steel when an oxidized edge is acceptable and speed is critical. Use high-pressure, high-purity Nitrogen for stainless steel, aluminum, and other non-ferrous metals requiring clean, oxide-free edges. Use Air only for thin mild steel where dross tolerance is higher.
*Optimize Nozzle Selection & Maintenance:
Use the nozzle diameter recommended by the machine manufacturer for the material type, thickness, and gas.
*Inspect Nozzles Daily:
Look for damage (chips, dents), blockages (splatter inside), and cleanliness. Clean with appropriate tools (nozzle cleaners, alcohol wipes). Replace damaged nozzles immediately.
*Ensure Perfect Alignment & Standoff:
Perform regular nozzle alignment checks using the machine’s alignment procedure. Maintain a consistent and correct standoff distance (typically 0.5mm – 1.5mm, depending on nozzle). Use capacitive or mechanical height control systems.
3. Address Material Concerns
*Clean Material:
Remove rust, scale, oil, grease, and protective films before cutting. Use abrasive cleaning, degreasers, or dedicated laser cleaning systems. Handle cleaned material with gloves.
*Verify Material Grade & Quality:
Ensure the material matches the specified grade. Be aware that variations between suppliers or batches can occur. If dross problems suddenly arise on previously good material, suspect a material issue.
*Manage Internal Stress:
Use stress-relieved material where possible. Optimize nesting to minimize residual stress effects. Consider using micro-joints or tabs in intricate parts to prevent shifting during cutting.
4.Maintain Machine Health
*Regular Optical Maintenance:
Follow a strict schedule for cleaning and inspecting protective windows, collimating lenses, and focusing lenses. Replace lenses when specified or if damage/scorching is visible. Ensure the fiber delivery is intact.
*Check Beam Alignment:
Perform periodic beam alignment checks as per the manufacturer’s procedure to ensure optimal power delivery.
*Maintain the Cutting Bed:
Regularly clean slag and debris from slats. Replace bent or heavily damaged slats. Ensure the bed is level and provides adequate support.
*Calibrate Height Control:
Ensure the capacitive or mechanical height sensor is accurately calibrated to maintain consistent nozzle standoff, especially over uneven material or warped sheets.
5. Advanced Techniques
*Pierce Optimization:
Ensure pierce parameters (height, gas, power, time) are correct. Poor pierces can lead to immediate dross formation at the start of the cut.
*Corner & Contour Control:
Use machine features that slightly reduce speed or modulate power on sharp corners and small contours where heat buildup is higher, preventing localized dross.
*Gas Dynamics Optimization:
Some high-end systems offer features like dynamic gas pressure control during cutting or specialized nozzle designs (e.g., Laval nozzles) for superior gas flow characteristics.
Prevention Checklist: Key Takeaways for Dross-Free Production
* Start Clean: Use clean, high-quality material.
* Tune Parameters: Optimize power, speed, and focus for *each* job and material batch.
* Gas is King: Use correct type, ensure high purity/pressure, maintain nozzles meticulously.
* Focus Matters: Find and maintain the optimal focal position.
* Maintain Rigorously: Clean optics, check beam alignment, maintain bed and height control.
* Monitor Consistently: Perform regular test cuts and visually inspect edges.
Conclusion
Dross during fiber laser cutting is a complex but solvable problem. By understanding the intricate interplay of cutting parameters, assist gas dynamics, material properties, and the condition of metal laser cutting machine, fabricators can systematically diagnose and eliminate this costly defect. Consistent application of optimized settings, rigorous machine maintenance, and attention to material quality are paramount. Implementing the solutions outlined above will lead to significantly improved cut quality, reduced post-processing time and costs, enhanced part functionality, and ultimately, greater productivity and customer satisfaction in your sheet metal fabrication operations. Just remember, achieving dross-free cuts is an ongoing process of monitoring, adjustment, and refinement.
